Pascal for Blender

Pascal exports plain glTF with a small set of documented extras. The Pascal for Blender extension reads them so a scene lands in Blender as something you can work with, not a flat pile of meshes:

one collection per level with sub-collections per kind (walls, doors, windows, items, zones, slabs, ceilings, …)
objects named after their Pascal labels, with pascalId, kind and label kept as custom properties
zones rebuilt as coloured floor polygons (viewport only, excluded from renders)
metric units, and re-importing the same project replaces the previous import
optional material polish (real glass, leaf cutouts, a calmer site ground) and lighting presets

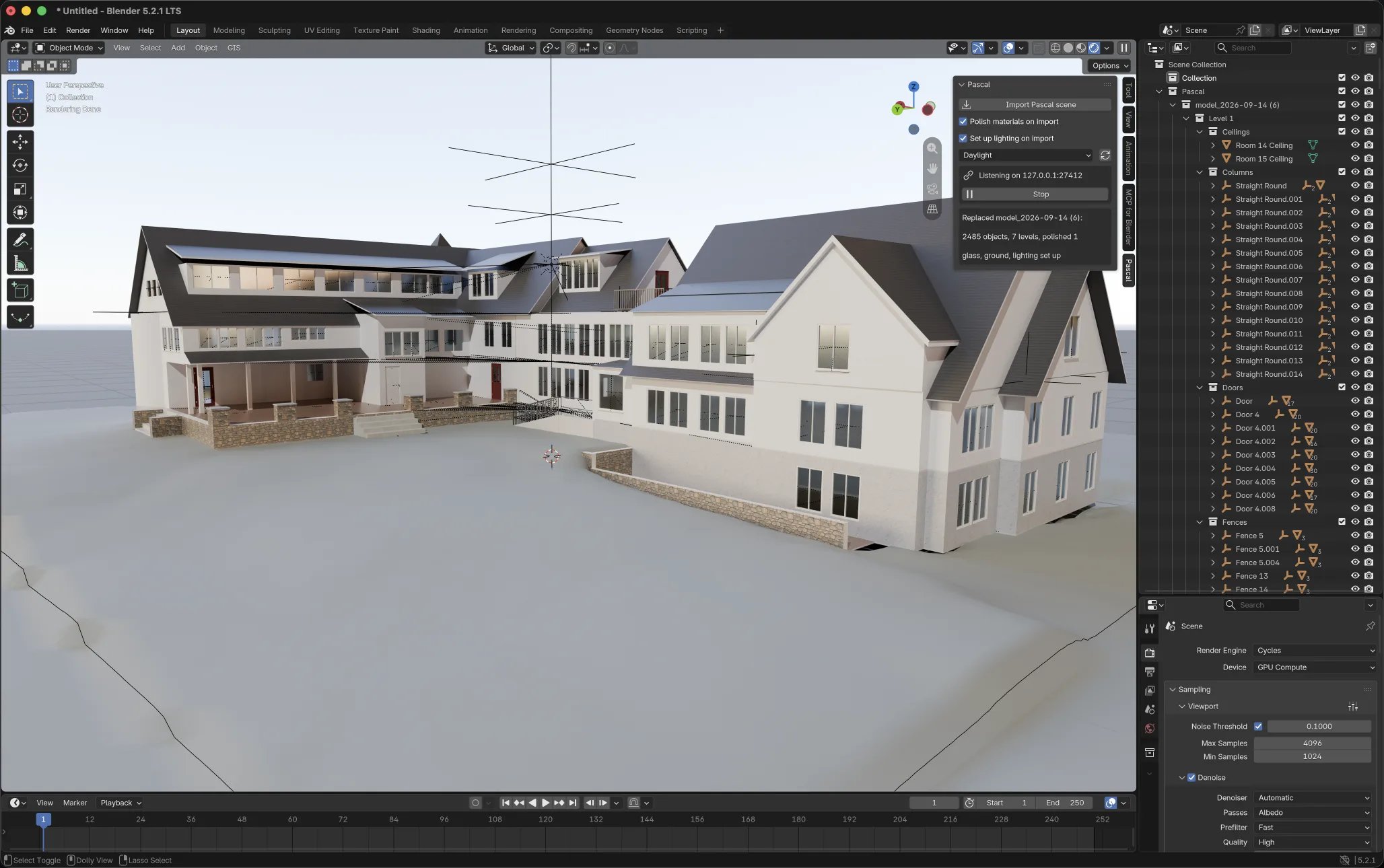

A Pascal house imported into Blender with the outliner and Pascal sidebar tab — A Pascal house in Blender: collections per level and kind, the Pascal tab, Daylight preset

The extension is open source under GPL-3.0, as Blender requires for add-ons. Blender 4.2 or newer.

Install

Download pascal-<version>.zip from the releases page.
In Blender: Edit → Preferences → Get Extensions, open the ▾ menu top right, choose Install from Disk… and pick the zip.
Press N in the 3D viewport and open the Pascal tab. It should read Listening on 127.0.0.1:27412.

Send a scene from the editor

With Blender open and the extension enabled:

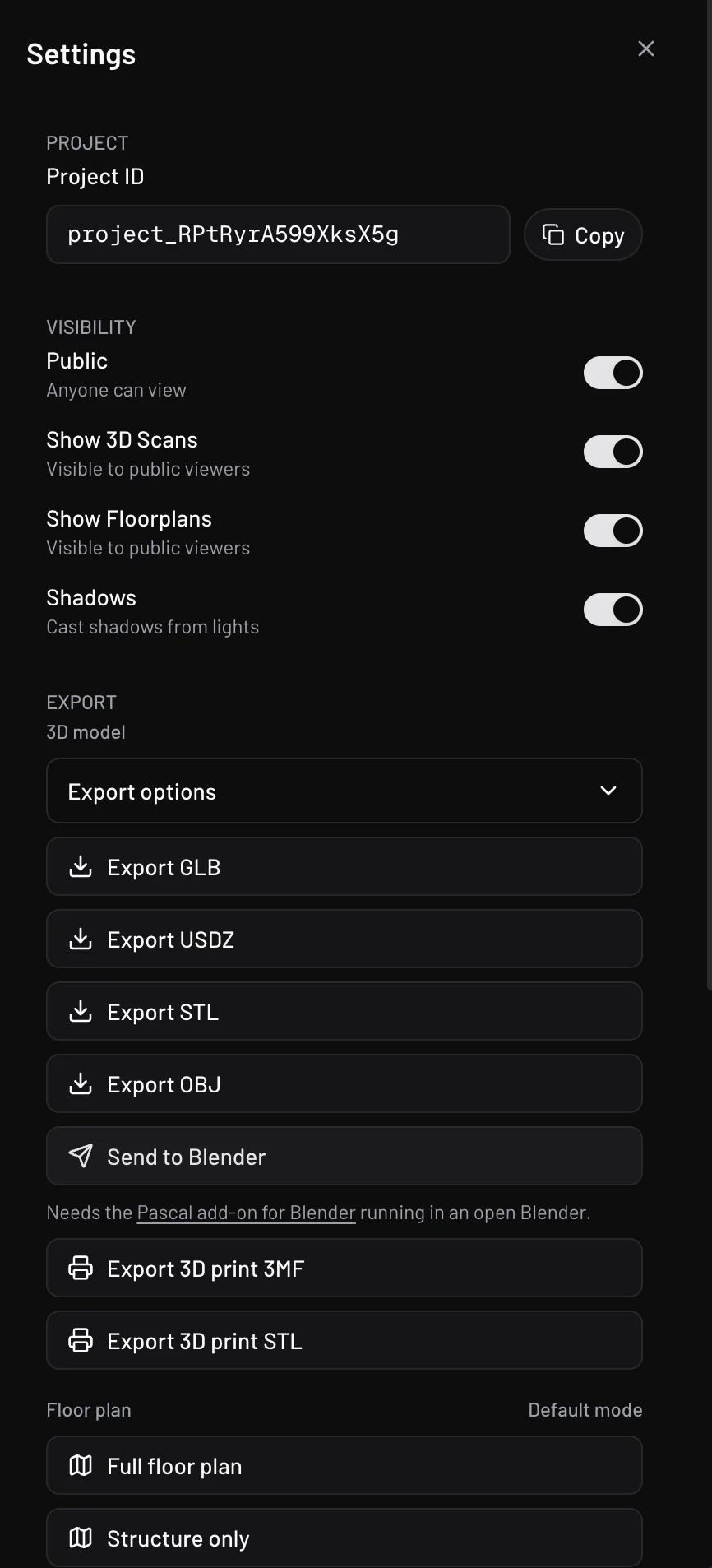

In the Pascal editor open Settings → Export and click Send to Blender.
The first time, Blender has not allowed your site yet. The Pascal tab in Blender lists the origin (for example https://editor.pascal.app) with an Allow button. Click it.
Click Send to Blender again. The editor exports the live scene, hands it to Blender, and reports Blender’s own summary when the import is done.

The same “Include in file” choices as Export GLB apply. https://editor.pascal.app is allowed by default; local or self-hosted editors go through the Allow step once.

No Blender open? The editor tells you so. Blender open but the button says your site is not allowed? Look for the Allow button in Blender’s Pascal tab.

Import a downloaded file

File → Import → Pascal scene (.glb) works on any file from Export GLB, with the same result as the send flow. Untick Replace previous import in the file dialog to keep an earlier import of the same project.

Lighting and material polish

Two options, both on by default, in the Pascal tab, the import dialog, and the extension preferences (which govern scenes sent from the editor):

Polish materials turns see-through surfaces into Principled glass, wires cutout alpha on leaf textures, and gives the site ground a calmer albedo.
Set up lighting adds a sky, a sun, a ground disc and a framed camera (Numpad 0 looks through it) and switches the viewport to rendered shading. Presets: Daylight, Golden hour, Overcast, Night (adds a warm bulb per room and a porch light), Physical sky. The refresh button next to the preset re-lights the current scene. Your render engine is left alone unless you choose otherwise in the preferences.

Everything the extension adds is named (Pascal sky, Pascal sun, Pascal camera, …) and reused on the next import, so tweak or delete freely.

Script geometry with Blender

An agent can build a custom object, window, door or column from a Blender Python (bpy) module instead of a three.js one. Blender is the better choice for bevelled and rounded edges, subdivision-smooth and organic forms, booleans, curves and text, and modifiers such as solidify, array and screw. The result is a normal Pascal object: you can move it, paint its surfaces and ask the agent to change its parameters. Ask for it in plain words:

Model a 1.6 m oak dining table with bevelled edges in Blender and place it in the
dining room.

The agent calls add_object with language: "bpy" and a module like this:

import bmesh
import bpy

PARAMS = {
    "width": {"default": 1.6, "min": 1.0, "max": 2.4, "step": 0.05, "unit": "m", "label": "Width"},
    "depth": {"default": 0.8, "min": 0.6, "max": 1.2, "step": 0.05, "unit": "m", "label": "Depth"},
}
MOUNT = "floor"


def box(name, size, location, material):
    mesh = bpy.data.meshes.new(name)
    bm = bmesh.new()
    bmesh.ops.create_cube(bm, size=1.0)
    bmesh.ops.scale(bm, vec=size, verts=bm.verts)
    bm.to_mesh(mesh)
    bm.free()
    mesh.materials.append(material)
    obj = bpy.data.objects.new(name, mesh)
    obj.location = location
    bpy.context.scene.collection.objects.link(obj)
    return obj


def build(params):
    w, d, h = params["width"], params["depth"], 0.75
    oak = bpy.data.materials.new("slot_top")
    oak.diffuse_color = (0.62, 0.45, 0.3, 1)
    steel = bpy.data.materials.new("slot_legs")
    steel.diffuse_color = (0.1, 0.1, 0.1, 1)

    top = box("part:top", (w, d, 0.04), (0, 0, h - 0.02), oak)
    bevel = top.modifiers.new("bevel", "BEVEL")
    bevel.width = 0.012
    bevel.segments = 3

    leg_h = h - 0.04
    for i, (x, y) in enumerate([(1, 1), (1, -1), (-1, 1), (-1, -1)]):
        location = (x * (w / 2 - 0.08), y * (d / 2 - 0.08), leg_h / 2)
        box(f"part:leg_{i}", (0.05, 0.05, leg_h), location, steel)

The module’s shape:

PARAMS declares the values a person or agent can change later, with their ranges.
MOUNT is floor, wall-side (on a wall face), wall (through a wall, like a window) or ceiling.
build(params) adds objects to an empty scene. Everything in the scene is exported, with modifiers applied.

Pascal’s naming conventions apply in Blender terms. Work in metres with Z up, and make the front face −Y (Blender’s Front view). Object names carry the meaning: part:<id> for a named part, light:<id> for a point or spot light (its intensity custom property sets the brightness, default 2; a spot keeps its cone and blend; shadows = True casts shadows; glow = {"size": 0.2, "strength": 1} draws a soft halo around the lamp), anchor:<id> for an empty other things attach to. Material names slot_<id> become paintable surfaces, so the table above has top and legs roles for paint. An animation is one action named open, close, loop or anything else, assigned to every object that moves in it. Use the data API and bmesh, not operators that need a 3D viewport. An object can have at most 300k triangles, 32 materials and 60 m per side. To change the object later, the agent calls add_object again with its nodeId and new params, or new code. get_source returns the current module.

Where Blender runs

Hosted Pascal runs each build in an isolated Blender sandbox with no network access. A build takes a few seconds. The object’s Parameters panel in the editor rebuilds it through Blender too.
Local MCP runs bpy modules in the Blender binary named by PASCAL_BLENDER, set in the environment that starts the MCP service. This runs the module on your machine without a sandbox, so only use it with code you trust. Without PASCAL_BLENDER, a bpy build is refused. The local editor can’t rebuild a Blender object from its Parameters panel; ask the agent to rebuild it instead.

What the file contains

Every Pascal scene node is a glTF node named by its pascalId with these extras:

Extra	Meaning
`pascalId`	Stable id, also the node name
`kind`	`site`, `building`, `level`, `wall`, `door`, `window`, `item`, `zone`, `slab`, `ceiling`, `roof`, …
`label`	The user-facing name
`openable`, `clips`	Doors and windows that bake an open clip in the published web copy
`polygon`, `color`	Zones: `[x, z]` pairs (three.js Y-up) and a hex colour; the fill mesh is left out

Anything else is ordinary glTF 2.0 that any importer handles. Glass exports with KHR_materials_transmission, so Unity, Unreal and Blender all render it as glass.

The loopback protocol

The extension listens on 127.0.0.1:27412 (the next few ports if taken). Anyone building another receiver, or another sender, can speak the same four routes:

Route	Purpose
`OPTIONS *`	CORS preflight, answers `Access-Control-Allow-Private-Network: true` for Chrome
`GET /pascal/health`	`{ app, version, addon, port, allowed }`, where `allowed` says whether the calling origin may send
`POST /pascal/import`	Body `model/gltf-binary`; optional `X-Pascal-Project-Name` (percent-encoded UTF-8), `X-Pascal-Project-Id`, `X-Pascal-Version`; answers `202 { id, state }`, `403 origin_not_allowed`, `400 not_glb`
`GET /pascal/import/<id>`	`{ id, state: queued \| done \| failed, summary?, error? }`

Browsers are gated by the origin allowlist; requests without an Origin header (curl, local scripts) are accepted, since the allowlist exists to gate the browser’s ambient authority. The editor side lives in the open-source editor package (lib/send-to-app.ts), so the same button could target any app that implements these routes.
